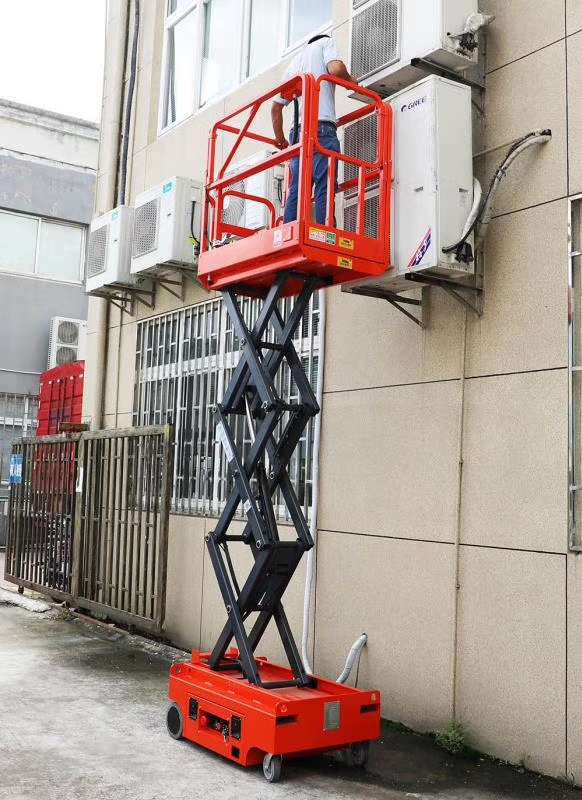

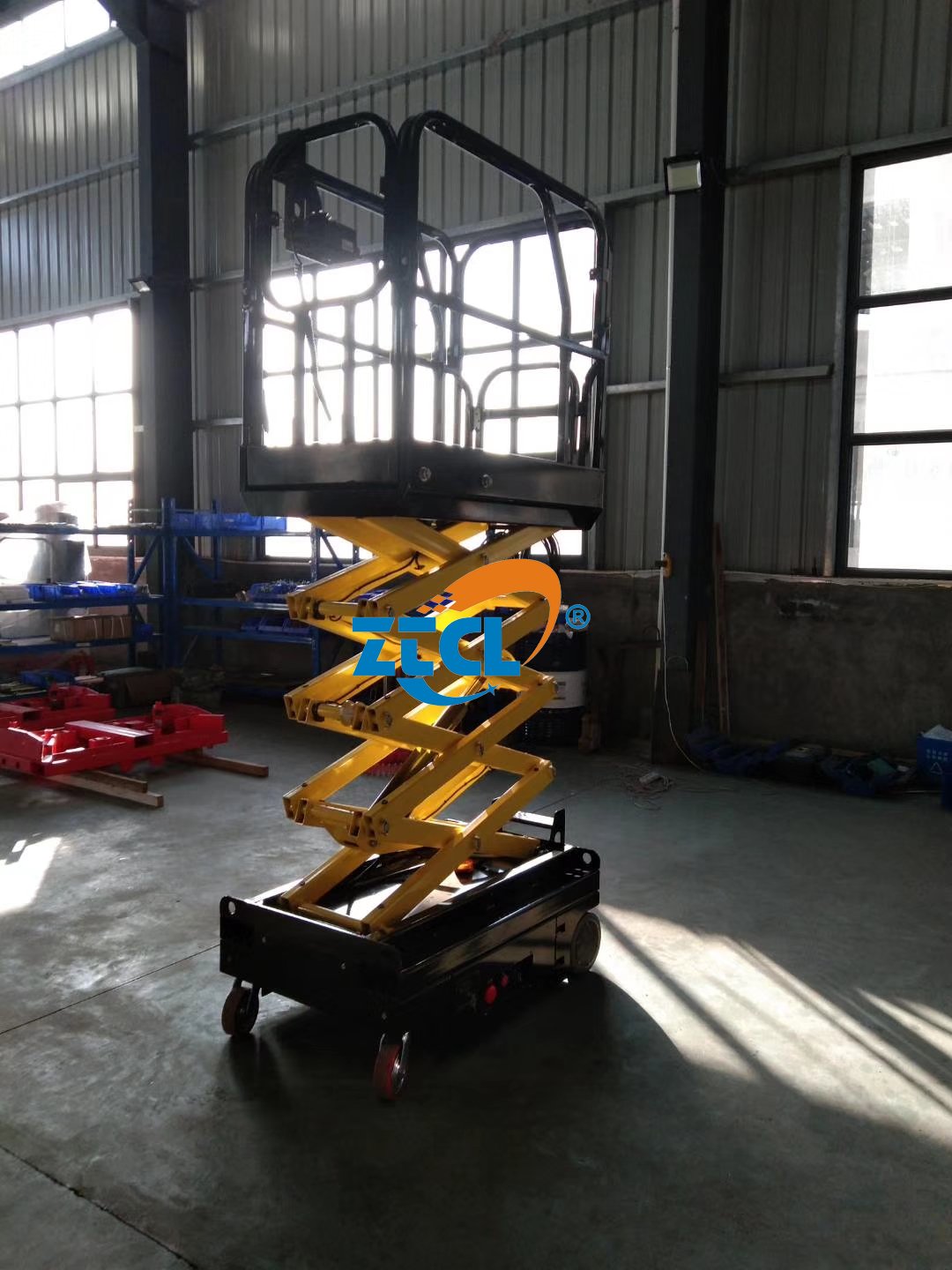

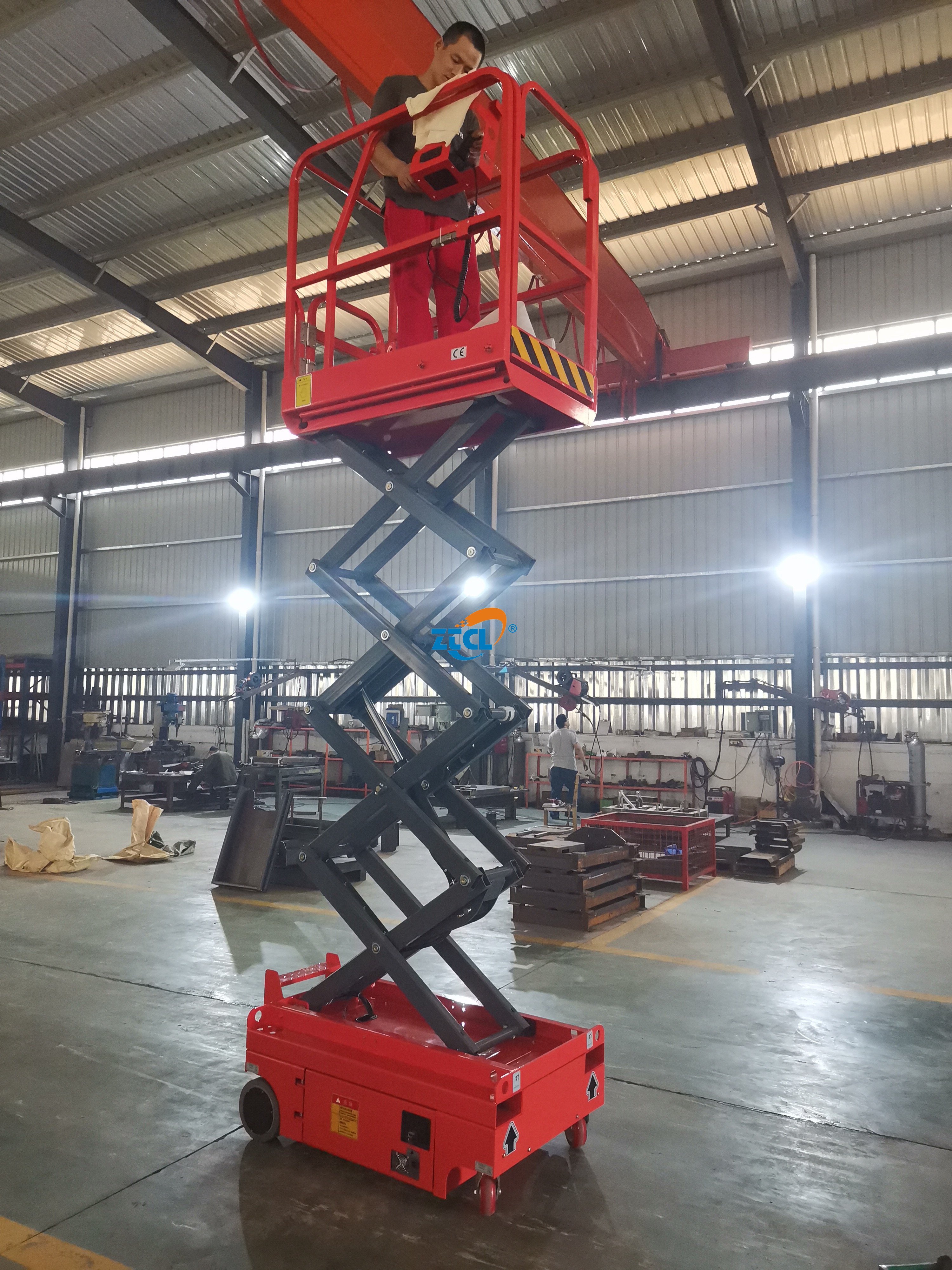

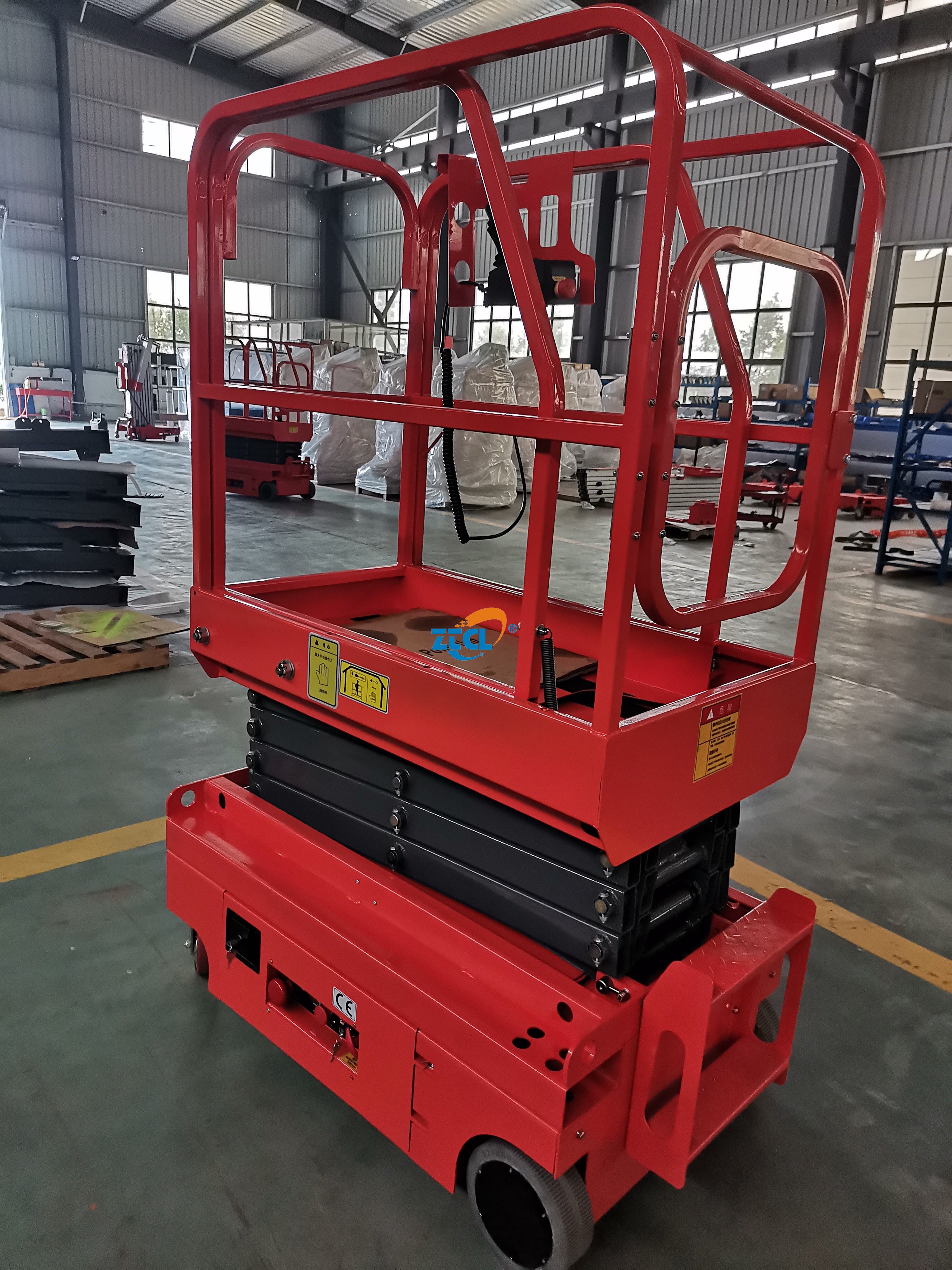

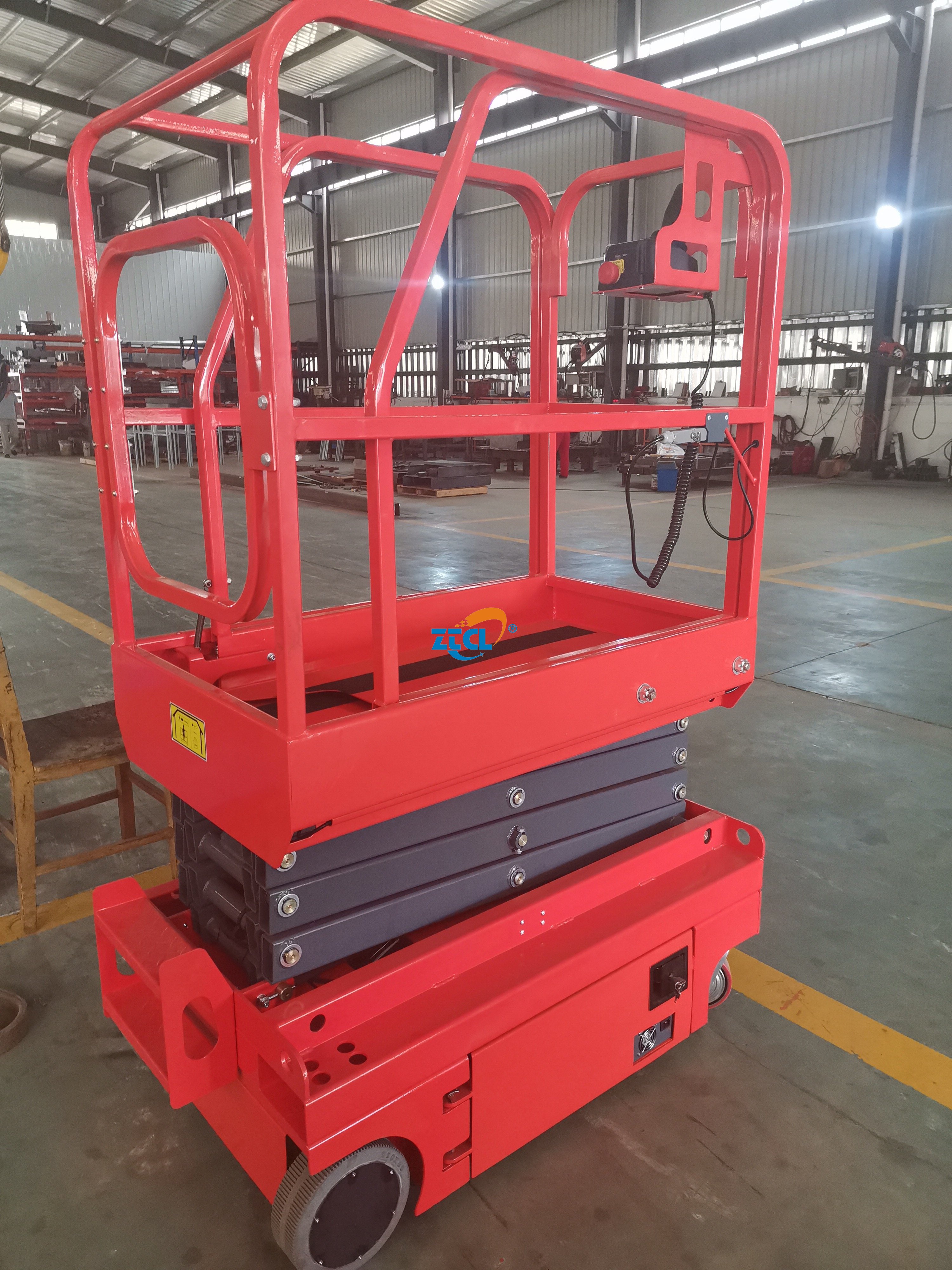

ZTGTJZ Self-propelled scissor lift

Home > PRODUCTS > Electric Scissor lift > ZTGTJZ Self-propelled scissor lift

ZTJCPT0407

Platform load 240KG
wheelbase 1.0M
Maximum workers 1
up and down speed 34-25SEC
platform height 4.00M
Lifting motor 24V0.8KW
Work height 6.00M
Battery 2*12V*100AH
Self-Length 1.32M tyre 0.23*0.08M
Self-Width 0.76M
Max Climb Capability 25%
Self-Height 1.83M
Max working angle 1.5-2
Platform size 1.15M*0.6M*1.1M
Charger 24V12A
Extension size 0.55M
Machine weight 660KG
Extended load 100KG
Min ground clearance 19mm

Electric control system :Shanghai lezhan
Cylinder :Chuzhou Kangda
Explosion proof valve: Italian les
seal ring :Japan NOK
Drive wheel: Gilforth
Power battery: Lishi or Chaowei
chassis :Q345 manganese steel
surface treatment :Electrostatic spraying
