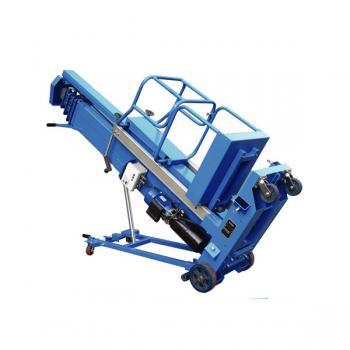

    ZTGTWY 16M 52ft

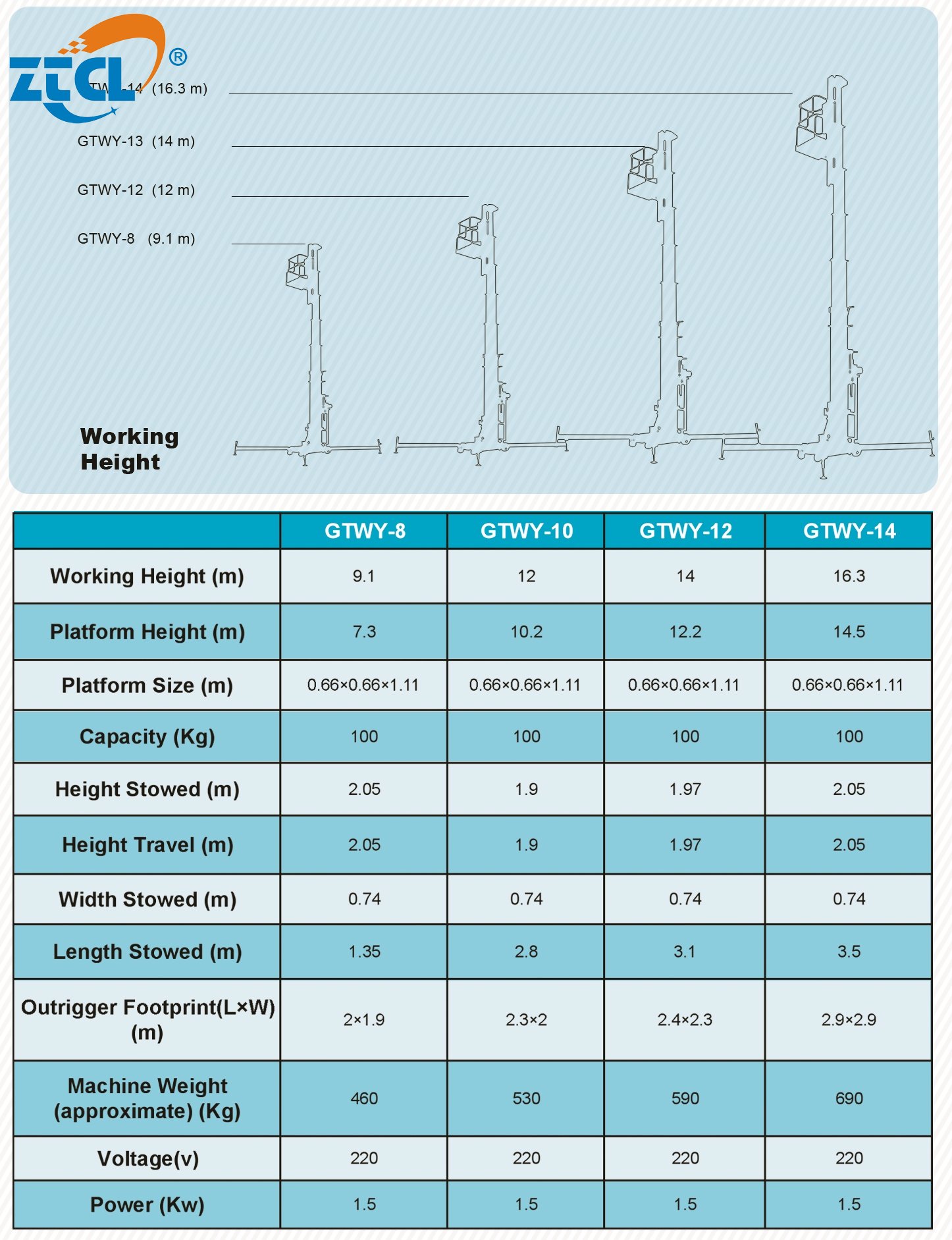

    Working Height(m) 9.1 12 14 16.3
    Platform Height(m) 7.3 10.2 12.2 14.5
    Platform Size(m) 0.66*0.66*1.11 0.66*0.66*1.11 0.66*0.66*1.11 0.66*0.66*1.11
    Capacity(kg) 100 100 100 100

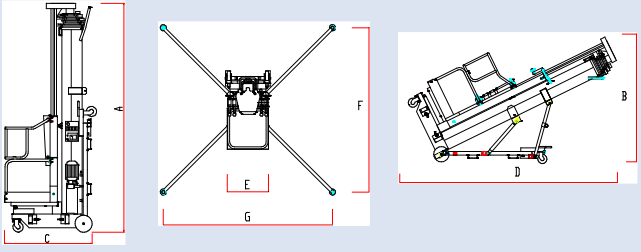

    Height Stowed(m) 2.05 1.9 1.97 2.05
    Height Travel(m) 2.05 1.9 1.97 2.05
    Width Stowed(m) 0.74 0.74 0.74 0.74
    Length Stowed(m) 1.35 2.8 3.1 3.5
    Outrigger Footprint(L*W) (m) 2*1.9 2.3*2 2.4*2.3 2.9*2.9
    Machine Weight(appoximate)(kg) 460 530 590 690
    Voltage(v) 220 220 220 220
    Power(kw) 1.5 1.5 1.5 1.5
