ZTPT Crawler aerial working platform

Home > PRODUCTS > Electric Scissor lift > ZTPT Crawler aerial working platform

ZTPT0608M

ZTPT-6.6M

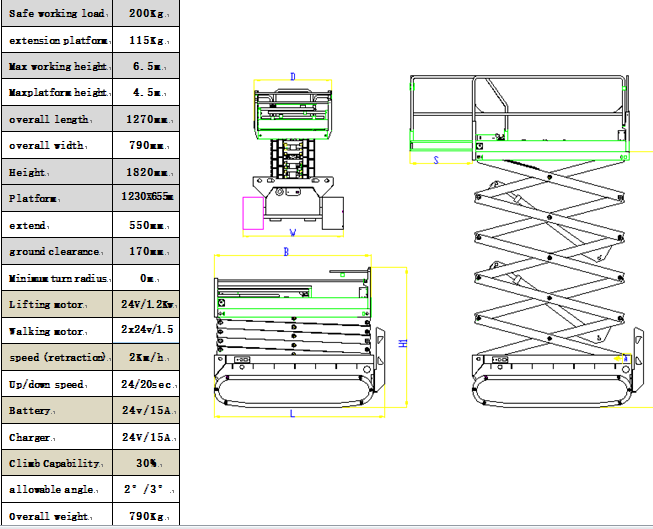

Safe working load 200Kg
extension platform 115Kg
Max working height 6.5m
Maxplatform height 4.5m
overall length 1270mm
overall width 790mm
Height 1820mm
Platform 1230X655mm
extend 550mm
ground clearance 170mm
Minimum turn radius 0m
Lifting motor 24V/1.2Kw
Walking motor 2x24v/1.5kw
speed (retraction) 2Km/h
Up/down speed 24/20sec
Battery 24v/15A
Charger 24V/15A
Climb Capability 30%
allowable angle 2°/3°
Overall weight 790Kg
Its cost is usd7980

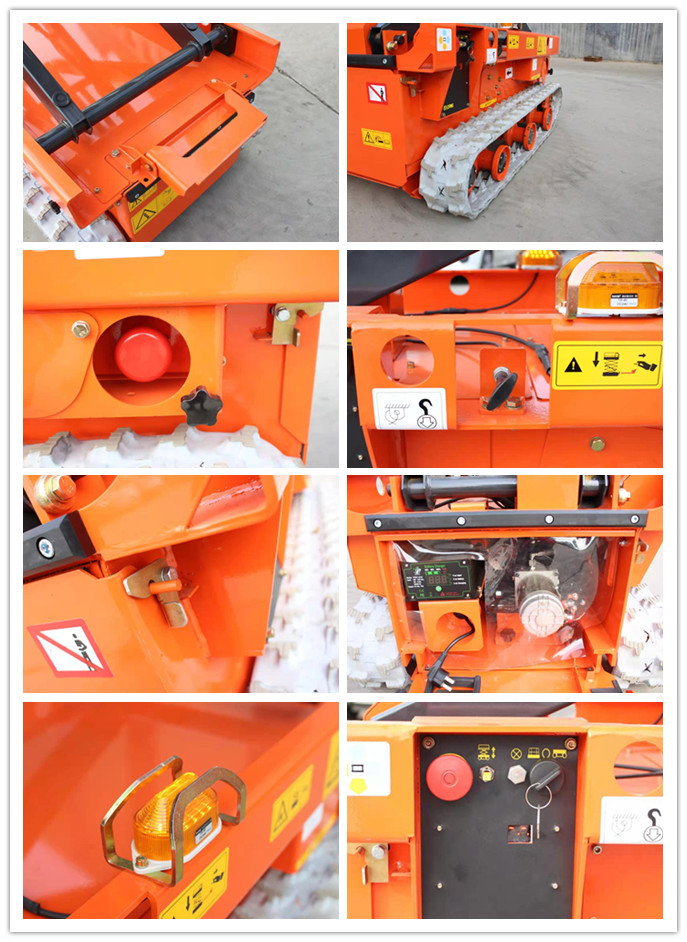

PRODUCT DETAIL

   Be able to drive at maximum height
   Maneuverable, extremely easy to use;
   Safe ground clearance for indoor/outdoor Operation
   Robust, reliable and easy to maintain
   Standard feature
   Double wheel traveling speed
   Flexible turning unit
   Emergency lowering device
   Swing-out tray
   Pothole protection device
