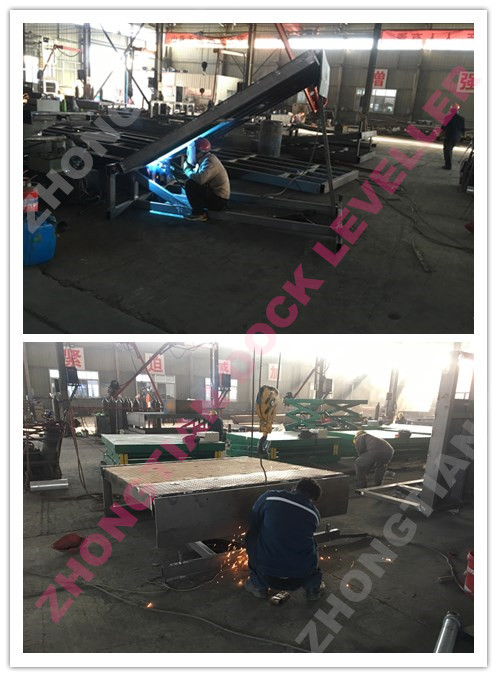

ZTDCQG-15T Dock Leveler size:2000*2200mm self-height 600mm up +400 down -300
Serial number Part name Specification and model texture of material Remarks (Supplier)
1，Panel size two thousand one hundred and eighty × two thousand × 8mm checkered plate Q235
2， main beam one hundred and fifty × seventy-five × 5mm rectangular tube Q235 Shandong Zibo Lubao
3， Auxiliary beam one hundred and fifty × seventy-five × 5mm rectangular tube Q235
4， Main board shaft sleeve 45# seamless pipe, φ 45. Quenching and tempering treatment 45# Laigang
5， Main board pivot pin 45# round steel, φ 45. Quenching and tempering treatment 45# Laigang
6， Tongue plate one thousand nine hundred and eighty × three hundred and ninety × 20mm
Firmly welded Q235 Plate 16mm + checkered plate 4mm
7， Articulated ear Plate 10mm Q235 Jigang
8， chassis Rectangular tube 150 * 75 * 5 Q235 Shandong Zibo Lubao
9， Skirt Flat plate 2.5mm Q235
10， Approach plate cylinder Cylinder bore Ф ninety Jinan huataili
11， Tongue cylinder Cylinder bore Ф forty Jinan huataili
12, Power unit Yidehep pump station
13, Hydraulic tubing Rated pressure 16mpa-i- Ф ten
Double layer steel mesh Aolong (Xiangsi), Jingxian County, Hebei Province
14, Hydraulic oil Kunlun hydraulic oil Jinan Kunlun hydraulic oil
15, Control appliance Delixi Jinan Delixi sales center
16, surface treatment Shot blasting paint baking
17, Drive motor 380v/0.75kw
18, seal ring Imported from Japan NOK
19, Worktable
Stroke (mm) Up 400mm, down 300mm
Minimum height of equipment: 600
20, working pressure ≤16Mpa
21, Crash pad Solid rubber crash block rubber
22, Operation control The whole set of actions of the fixed boarding axle (pitching up, horizontal and pitching down are completed by buttons)
23, Lip shaft sleeve 45# seamless pipe, φ 45. Quenching and tempering treatment 45# Laigang
24, Lip pin 45# round steel, φ 28. Quenching and tempering treatment 45# Laigang
