    ZTGTJZ-1618M

    ZTGTJZ-1618M LIFT PLATFORM HEIGHT 16M .WORKING HEIGHT IS 18M. Proportional control automatic brake system buzzer extension platform
    Automatic pit protection system emergency descent system horn charging protection system
    Platform self-locking door emergency stop button work schedule
    Full stroke walking tubing explosion-proof system safety maintenance support rod
    Traceless tire fault diagnosis system standard transport forklift hole
    4 × 2 drive tilt protection system folding fence

    PRODUCT DETAIL

    Model (self- hydraulic drive) parameter
    ZTGTJZ-1618M
    Maximum working height 18m
    Maximum platform height 16m
    Safe working load 227kg
    Safe working load of extended platform 113kg
    Dimensions of working platform (L × w × h) 2.94×1.15×1.1m
    Overall dimensions (length × width × height,
    Guardrail (not folded)    		 3.17×1.39×2.85m
    Overall dimensions (length × width × height,
    Guardrail (folding)    		 3.17×1.39×2.32m
    Table extension size 0.9m
    Minimum ground clearance 0.1/0.02m
    wheelbase 2.62m
    Turning radius (inner / outer) 0/3.1m
    Lifting / driving motor 24V/4.5KW
    Lifting speed 3-5m/min
    Machine travel speed (retracted state) 3.5km/h
    Machine running speed (lifting state) 0.8km/h
    Battery 4×12V/300ah
    Charger 24V/30A
    Max Climb Capability 25%
    Maximum allowable working angle 1.5°/3°
    Tyre Φ381×127mm
    Overall weight 4400kg


    Main configuration
    Safety  guardrail: Adopts 35mm * 35mm square tube
    Table top： Anti skid pattern plate 3mm
    Bracket: Rectangular tube: 120mm * 80mm * 5mm / 4mm (g Q345B)
    Underframe: Steel plate welding
    Connecting pin： Oil-free bearing (Germany)
    Hydraulic cylinder： ZTCL GROUP independent production
    Power battery： Chaowei
    Hydraulic oil： Great Wall N46, anti-wear
    Electric control system： Changsha tuoou
    Hydraulic drive system： Dali
    Motor pump： Wanxiang
    Valve block ： Sangte
    Charger： Somet
    Tire： Rolvan
    Surface treatment Ectrophoretic paint baking

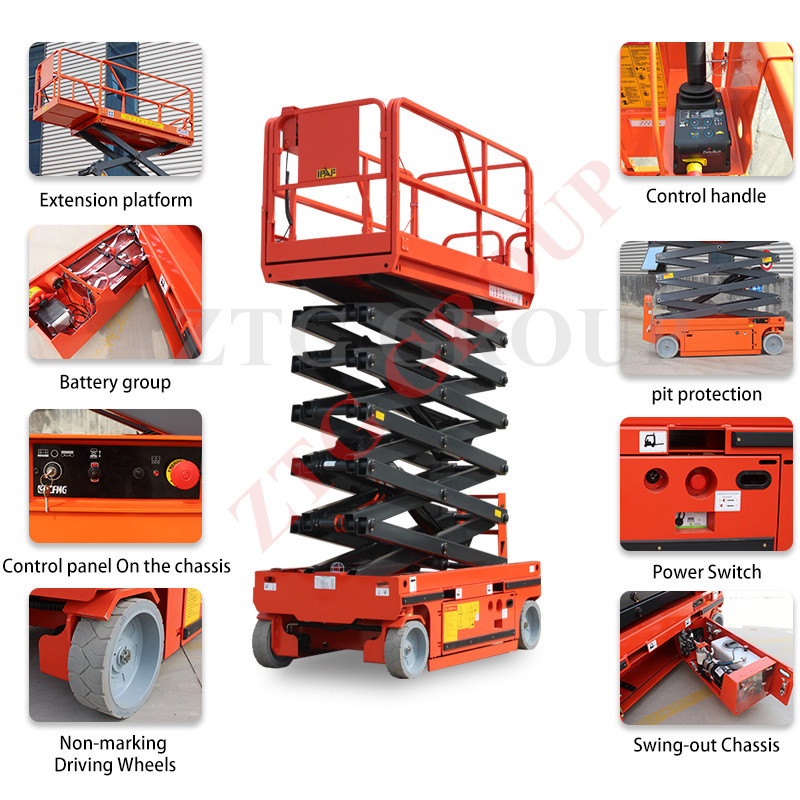

    ZTCL GROUP PRODUCT DETAIL:
    ● Proportional controls
    ● Self-lock gate on platform
    ● Drivable at full height
    ● Non-marking tyre, 2WD
    ● Automatic brakes system
    ● Emergency stop button
    ● Tubing explosion-proof system
    ● Emergency lowering system
    ● Onboard diagnostic system
    ● Tilt sensor with alarm
    ● All motion alarm
    ● Horn
    ● Safety brackets
    ● Forklift pockets
    ● Folding guardrails
    ● Extendable platform
    ● Charger protection
    ● Flashing beacon
    ● Automatic pothole protection

    ZTCL GROUP Product characteristics
    1. The use of high-efficiency and energy-saving electric drive system, zero emission, low noise, and non-marking tires are easy to be environmentally friendly and convenient for construction in closed environments such as office buildings, hospitals, schools, etc., and minimize environmental impact.

    2. Active safety protection mechanisms such as pothole protection mechanisms are adopted, and self-designed safety control systems are configured. With humanized design ideas, perfect safety protection, and a wealth of optional combinations, it fully meets the needs of customers for safety, reliability, and intelligence. demand.

    3. The structure adopts a narrow design, and the whole vehicle can easily pass through a single doorway. With a foldable fence, it is more convenient to transport and shift.

    4. The unique "zero turning radius" design can be used flexibly in narrow spaces.

    5. Achieve a maximum load of 450kg, reaching the leading level in the industry

    6. The maximum driving speed is 3.5km/h, with 25% climbing ability, and driving operation is easier.

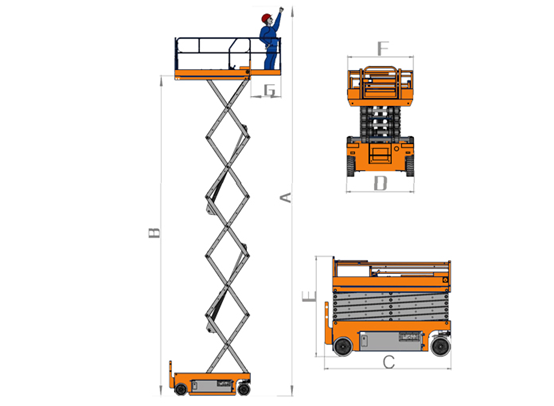

    Drawing
