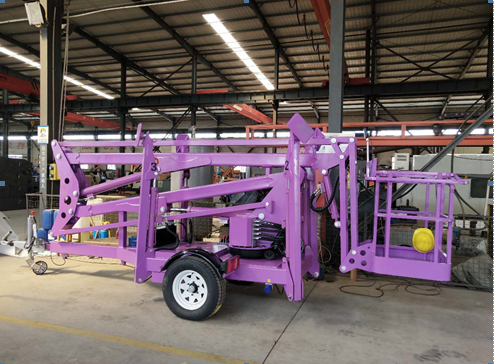

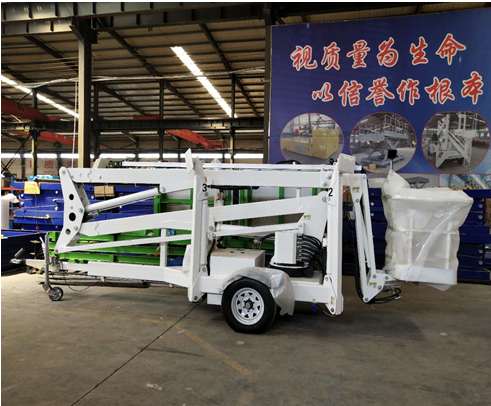

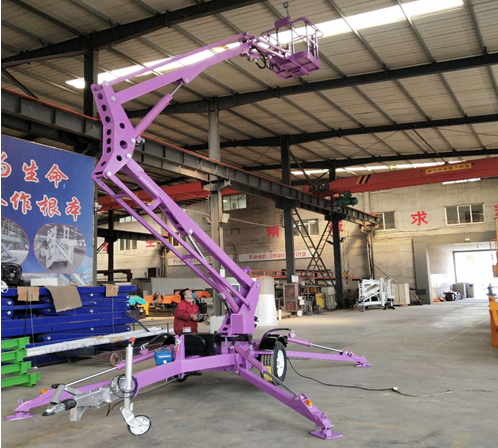

ZTTM Trailer boom lift

Home > PRODUCTS > Boom lift > ZTTM Trailer boom lift

ZTTM1012M

ZTPTF1012M Project performance parameter
Platform size 900*700mm
Loading capacity (kg) 200
Worker 2
Platform height mm 10000
Working height mm 12000

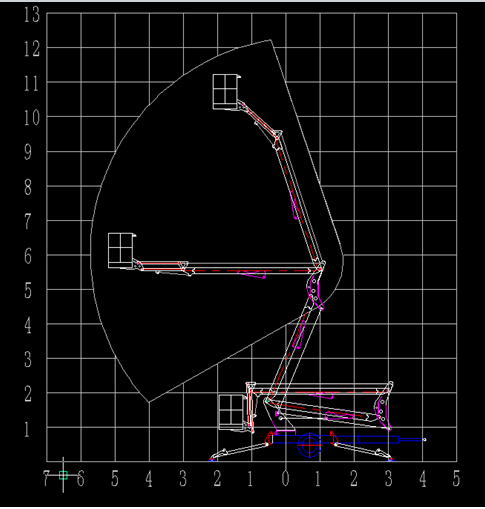

Working radius mm 5100
Whole machine length mm 6645
Whole machine width mm 1650
Minimum platform height mm 2050
Oil cylinder Hebei Hengyu
Power producer v/kw 380V/2.2kw standard configuration
Selection power： Diesel engine gasoline engine 220V 50hz
Batteries
4pieces 6V230ah
Driving model External force traction
Rotation angle 359°
Hydraulic leg Automatic telescopic Independently adjustable
Tire 225-70R15C
control system Upper and lower control set manual emergency descending valve
Self-weight kg 1900
